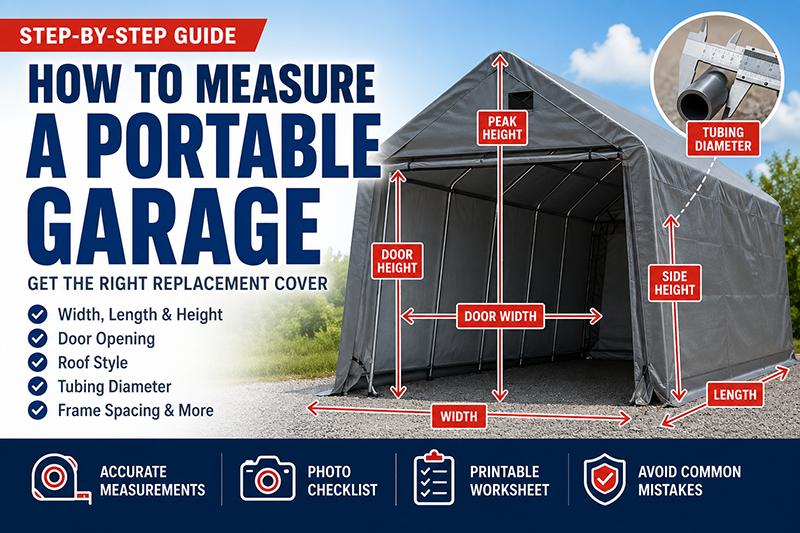

How to Measure a Portable Garage for a Replacement Cover (Step-by-Step Guide)
Posted by CanopiesAndTarps on Jul 29th 2026
Portable garage covers are not automatically interchangeable—even when two shelters are both advertised as 10 feet by 20 feet.
Differences in frame width, overall length, side height, peak height, roof shape, door opening, tubing diameter, attachment points, and manufacturer design can prevent a replacement cover from fitting correctly.
The most reliable way to identify a replacement is to measure the actual frame, document the shelter design, and compare every measurement with the product specifications.

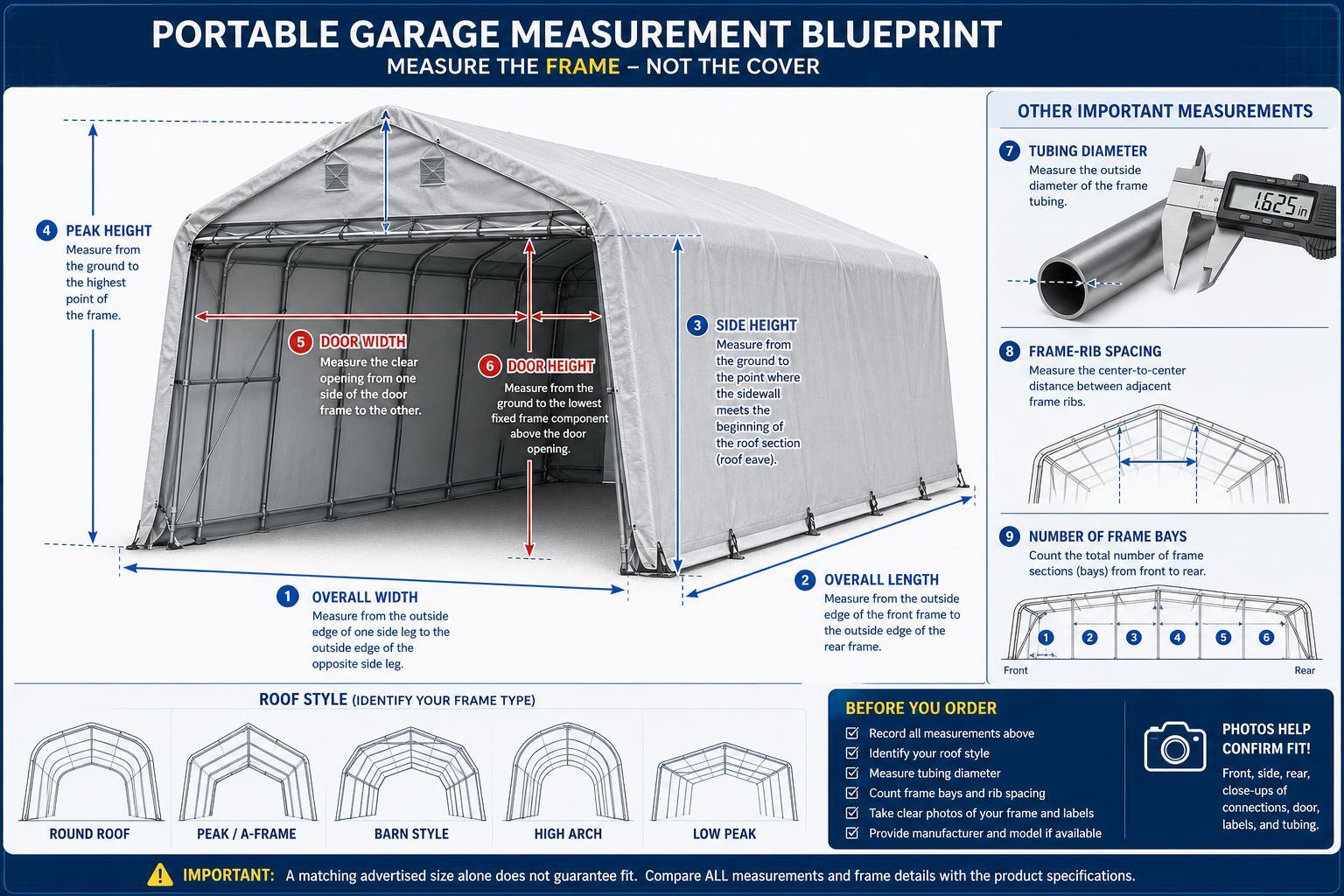

Shop Replacement CoversPortable Garage Measurement Blueprint
Why Accurate Measurements Matter
Frame Footprint
Width and length determine the basic shelter footprint, but small differences can affect where the cover seams and attachment points land.
Roof Geometry
Round, peaked, barn-style, and high-arch frames require differently shaped roof panels and sidewalls.
Door Alignment
Door width, door height, zipper location, and panel configuration must align with the existing frame.
Frame Compatibility
Tubing diameter, rib spacing, attachment hardware, and frame layout can vary between manufacturers and models.
Tools You Will Need
Long Measuring Tape
Use a tape long enough to measure the complete width, length, height, and door opening without combining several short measurements.
Step Ladder
A stable ladder may be needed to reach the roof peak, upper frame fittings, and manufacturer labels safely.
Notebook or Phone
Record every dimension and take clear photographs of the entire structure, frame connections, doors, and labels.
Caliper or Ruler
A caliper is useful for measuring the outside diameter of round frame tubing more accurately.
Second Person
Larger shelters are easier and safer to measure when another person holds the opposite end of the tape.
Frame and Cover Labels
Check the frame, old cover, instruction manual, storage bag, and original paperwork for model or part information.
Step-by-Step: How to Measure a Portable Garage
Measure the Overall Frame Width
Measure across the front or rear of the shelter from the outside edge of one frame leg to the outside edge of the opposite leg.
Do not measure only the interior clearance between the legs. Replacement covers are generally designed around the complete outside frame footprint.
Measure the Overall Frame Length
Measure from the outside edge of the front frame section to the outside edge of the rear frame section.
Measure along both sides of the garage. Differences may indicate shifted frame sections, unequal bay spacing, or previous damage.
Measure the Side or Leg Height
Measure vertically from the ground to the point where the sidewall meets the beginning of the roof section.
On a peaked frame, this is typically measured to the side-rail or roof-eave connection. On a round-roof shelter, identify where the vertical wall transitions into the curved roof.
Measure the Total Peak Height
Measure vertically from the ground to the highest point of the shelter frame.
Total peak height is especially important for A-frame, barn-style, high-peak, and rounded shelters because it defines the amount of material required across the roof.
Measure the Door Opening Width
Measure the clear opening from one side of the doorway frame to the other. Record the actual usable opening rather than the full shelter width.
Also note whether the door is centered, offset, double-zippered, roll-up, solid-panel, or divided into multiple sections.
Measure the Door Opening Height
Measure vertically from the ground to the lowest fixed frame component above the doorway.
The finished fabric opening may be smaller than the frame opening because of seams, zippers, flaps, and attachment areas.
Identify the Roof and Frame Shape
Determine whether the shelter has a round roof, peaked roof, barn-style roof, high-arch roof, low-peak frame, or another configuration.
Two shelters with the same width and length may require completely different replacement covers when their roof shapes differ.
Measure the Frame Tubing Diameter
Measure straight across the outside of the tubing at its widest point. Do not wrap the measuring tape around the pipe unless you plan to calculate the diameter from its circumference.
Check more than one frame section. Some shelters may use different tubing dimensions for legs, roof ribs, cross rails, or reinforcement components.
Measure Rib and Frame-Bay Spacing
Measure the distance between adjacent roof ribs or vertical frame sections. Count the total number of frame bays from front to rear.
Rib spacing can help distinguish between shelters that have the same advertised length but use a different number of structural sections.
Document the Attachment System
Check whether the cover is secured with ratchets, webbing straps, elastic cords, bungees, pockets, hook-and-loop tabs, rope, or another method.
Photograph the lower sidewall attachment, roof connections, door fasteners, and end-panel connections.
Find Manufacturer and Model Information
Look for labels, serial numbers, model numbers, replacement part numbers, instruction manuals, receipts, and markings on the frame or old cover.
Model information is often the most reliable way to identify a brand-specific replacement cover.
How to Identify Your Portable Garage Roof Style
Round Roof
Curved roof ribs create a smooth arch from one side of the shelter to the other.
Curved profilePeak or A-Frame
Straight roof sections rise from the sidewalls to a defined center ridge.
Center ridgeBarn Style
Multiple roof angles create steeper upper sections and more usable sidewall clearance.
Multi-angle roofHigh Arch
A taller curved roof creates increased center clearance and a different cover contour.
Tall curved roofPortable Garage Measurement Worksheet
Record These Measurements Before Shopping
Write down each dimension and keep the worksheet with your frame photos and model information.
Portable Garage Measurements at a Glance
| Measurement | Where to Measure | Why It Matters | Common Mistake |
|---|---|---|---|
| Overall Width | Outside edge of one side leg to the outside edge of the opposite leg | Defines the full front and rear frame width | Measuring only the interior clearance |
| Overall Length | Outside front frame edge to outside rear frame edge | Determines sidewall and roof-panel length | Measuring the old cover instead of the frame |
| Side Height | Ground to the roof transition or side-rail connection | Determines the sidewall height and roof starting point | Confusing side height with peak height |
| Peak Height | Ground to the highest point of the frame | Defines roof rise and total cover contour | Estimating instead of measuring vertically |
| Door Width | Clear frame opening from side to side | Helps align the zipper and door panel | Assuming it equals the shelter width |
| Door Height | Ground to the lowest fixed frame component above the opening | Determines usable vehicle and equipment clearance | Measuring only the fabric opening |
| Tubing Diameter | Straight across the outside of the round pipe | Helps identify the frame and attachment compatibility | Measuring around the pipe without calculating diameter |
| Rib Spacing | Center-to-center or edge-to-edge between adjacent frame ribs | Helps distinguish similar-size shelter models | Ignoring the number of frame sections |
Not All 10' × 20' Portable Garages Use the Same Cover
The listed size is only one part of compatibility. Two shelters may both be described as 10 feet by 20 feet while using different peak heights, roof shapes, door openings, frame diameters, rib spacing, and attachment systems.
Always compare the complete product description and model compatibility before ordering.
Common Measuring Mistakes to Avoid
Measuring the Old Fabric
A weathered cover may have stretched, shrunk, sagged, or become distorted. Use the frame whenever possible.
Guessing the Advertised Size
A shelter that appears to be 10 feet by 20 feet may have actual dimensions that differ from the nominal size.
Ignoring Roof Shape
Round, peaked, barn-style, and high-arch covers are shaped differently and cannot be assumed interchangeable.
Measuring Inside the Legs
Interior clearance does not represent the full outside frame width used for cover sizing.
Skipping Door Measurements
The front cover may have a door configuration that does not align with the existing frame.
Ignoring Rib Spacing
Frame sections and roof ribs can be positioned differently even when the overall shelter length appears the same.
Ordering by Appearance
Similar-looking garages may use different frame geometry, fittings, covers, and attachment systems.
Not Checking the Model Number
Brand and model information can provide more reliable identification than measurements alone.
Photos to Take Before Requesting Help
Clear photographs can reveal compatibility details that measurements alone may not show.
Full Front View
Show the complete door opening, front frame, roof shape, and overall width.
Full Side View
Show the frame length, number of ribs, side height, and roof profile.
Rear View
Document the rear panel, frame layout, vents, windows, or secondary door configuration.
Roof and Frame Profile
Photograph the shelter straight on so the roof shape can be compared accurately.
Frame Connections
Include corner fittings, ridge fittings, cross rails, rib connections, and lower attachment hardware.
Manufacturer Label
Photograph any label, model number, serial number, part number, or printed cover information.
Door Zippers
Show the zipper path, flap style, roll-up method, and location of the door opening.
Frame Tubing
Photograph the tubing next to a ruler or caliper showing the outside diameter.
Cover Attachment
Show ratchets, straps, pockets, bungees, elastic cords, or other fastening components.
How to Compare Your Measurements with a Replacement Cover
Once you have completed the measurements, compare each item with the product listing rather than relying only on the product title.
- Compatible frame width and length
- Actual or nominal finished cover dimensions
- Sidewall and peak height
- Roof shape and frame profile
- Door width, height, and zipper configuration
- Frame tubing diameter
- Number and spacing of roof ribs
- Attachment hardware and ratchet locations
- Manufacturer and model compatibility
- Included components and replacement hardware
When Should You Replace More Than the Cover?
A Cover-Only Replacement May Work When:
- The frame is straight and structurally sound
- The manufacturer and model are known
- The correct replacement cover is available
- The attachment hardware remains usable
- The frame measurements match the product specifications
Consider a Complete Shelter When:
- The frame is bent, rusted, cracked, or incomplete
- Several fittings or roof ribs are damaged
- The model cannot be identified
- The original cover is discontinued
- The existing frame uses an uncommon or incompatible design
Helpful Replacement Cover & Shelter Resources
Use these guides and product categories to identify your shelter, compare cover options, and find a compatible replacement.
- Shop Canopy and Portable Garage Replacement Covers Browse replacement covers for compatible shelters, garages, carports, and canopy frames.
- How to Choose a Replacement Canopy Cover Compare frame size, roof shape, material, finished dimensions, and model compatibility.
- How to Measure for a Canopy Replacement Cover Learn how to measure traditional canopy frames, roof peaks, valances, tubing, and attachment systems.
- Universal vs. Brand-Specific Replacement Covers Understand why some covers fit a range of frames while others require an exact manufacturer and model.
- How to Find the Right ShelterLogic Replacement Cover Use shelter labels, model information, frame measurements, and cover part numbers to identify a replacement.
- RV Portable Garage Size & Clearance Guide Compare vehicle dimensions, door clearance, mirrors, roof accessories, and working space.
- Shop Portable Garages Browse vehicle shelters, round-roof garages, storage buildings, and outdoor shelter systems.
- Use the Tarp and Canopy Product Selector Get guided help finding a portable garage, replacement cover, canopy, tarp, or enclosure.
Frequently Asked Questions
Should I measure the old portable garage cover or the frame?
Measure the frame whenever possible. Old fabric can stretch, shrink, sag, tear, or lose its original shape, making it unreliable for replacement sizing.
What measurements do I need for a portable garage replacement cover?
Record the overall frame width and length, side height, total peak height, door opening width and height, frame tubing diameter, roof style, rib spacing, number of frame sections, attachment method, and manufacturer or model information.
Where do I measure the width of a portable garage?
Measure from the outside edge of one side leg to the outside edge of the opposite side leg. Do not measure only the interior space between the frame legs.
How do I measure the height of a portable garage?
Record both the side height and total peak height. Side height is measured from the ground to the roof transition, while peak height is measured from the ground to the highest point of the frame.
Are all 10-foot-by-20-foot portable garage covers the same?
No. Shelters with the same nominal size can use different roof shapes, heights, door openings, tubing diameters, frame spacing, attachment methods, and manufacturer-specific designs.
How do I identify whether my garage has a round or peaked roof?
A round-roof shelter uses curved roof ribs, while a peaked roof uses straight rafters that meet at a center ridge. Barn-style roofs use several angles, and high-arch shelters use a taller curved profile.
How do I measure the frame tubing diameter?
Measure straight across the outside of the round tubing at its widest point. A caliper provides the most accurate measurement.
What if I do not know the portable garage manufacturer?
Record all frame and door measurements, identify the roof shape, measure the tubing and rib spacing, count the frame bays, and take clear photographs. Even with this information, some model-specific covers may not be identifiable without a label or part number.
Can I use a cover from another brand if the dimensions match?
Possibly, but matching dimensions alone do not guarantee compatibility. Roof contour, door placement, attachment points, ratchet locations, rib spacing, and frame geometry must also match.
What happens if the replacement cover is too large?
An oversized cover may sag, flap, rub against the frame, collect water, misalign with the door, and place uneven stress on attachment points.
What happens if the replacement cover is too small?
A cover that is too small may not reach the lower frame connections, door opening, ratchets, pockets, or fastening points and may be placed under excessive tension.
Should I replace the whole portable garage if the frame is damaged?
A complete replacement may be more practical when the frame is bent, rusted, incomplete, structurally compromised, or uses discontinued components. Inspect the complete frame before purchasing a cover-only replacement.
Find the Right Portable Garage Replacement Cover
Measure the complete frame, identify the roof style, document the door and attachment system, and compare every detail with the replacement-cover specifications before ordering.
Replacement-cover compatibility can vary among manufacturers, shelter models, frame generations, and product revisions. Matching nominal dimensions or visual appearance alone does not guarantee fit.
