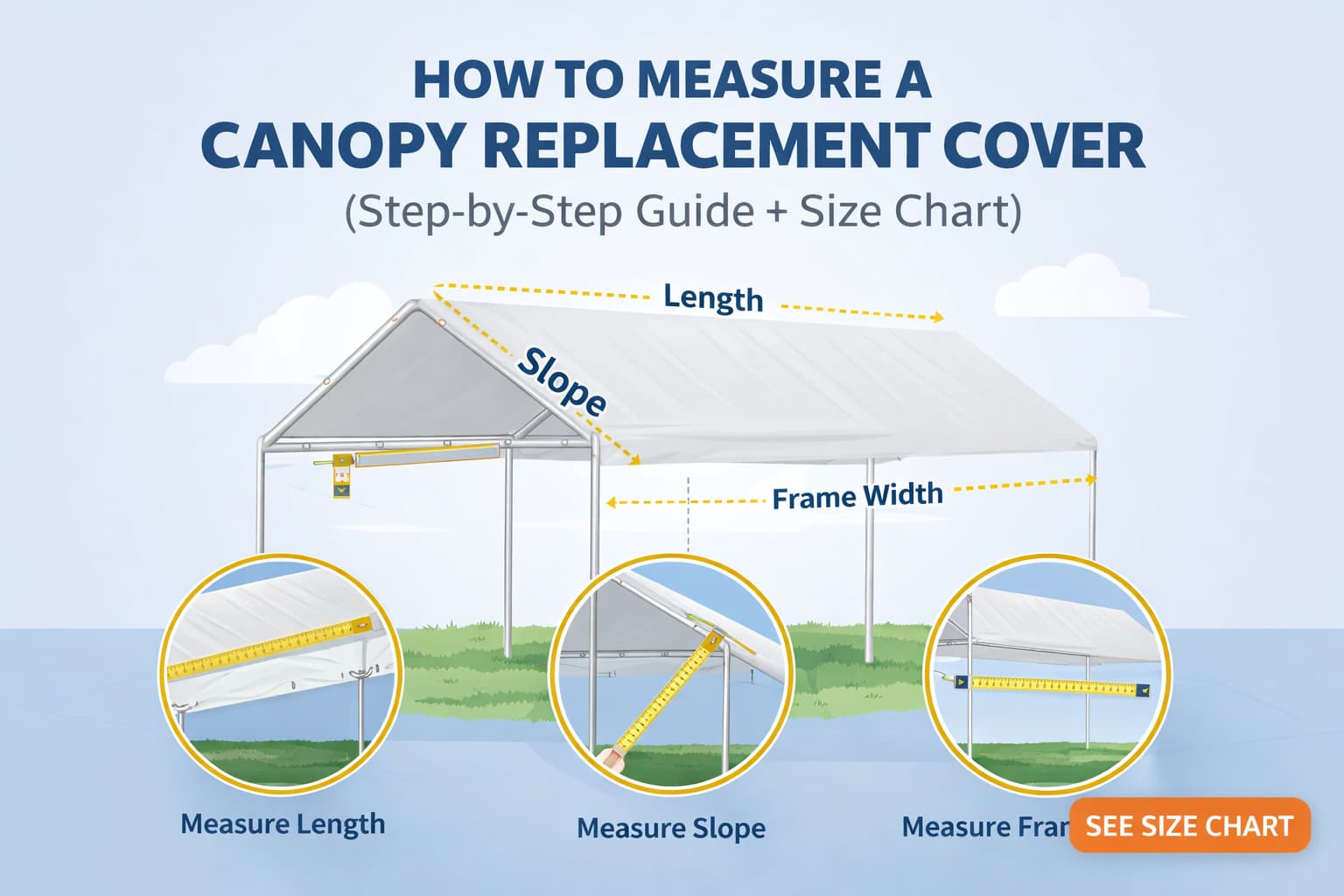

How to Measure a Canopy Frame for a Replacement Cover

If you’re looking to buy a replacement canopy cover, taking accurate measurements of your canopy frame is essential. Measuring your canopy frame correctly ensures the replacement cover fits properly, installs easily, and provides long-lasting protection.

In this guide, we’ll explain how to measure a canopy frame for a replacement cover, including the width, length, and peak length on one side—the three most important dimensions.

---

Why Measuring Your Canopy Frame Matters

Replacement canopy covers are designed to fit specific frame sizes. Incorrect measurements can lead to:

• Poor fit or loose fabric

• Sagging, water pooling, or wind damage

• Difficulty installing the replacement canopy cover

Always measure the canopy frame itself, not the old cover, which may be stretched, faded, or damaged.

---

What You Need to Measure a Canopy Frame

Before you begin, gather:

• A metal tape measure for accuracy

• A second person (recommended for larger canopy frames)

• A notepad or phone to record measurements

Make sure your canopy frame is fully assembled and properly squared before measuring.

---

Step 1: How to Measure the Width of a Canopy Frame

The canopy frame width is measured from one side of the frame to the other.

How to measure canopy width:

1. Stand at one end of the canopy.

2. Measure from the outside edge of one corner fitting to the outside edge of the opposite corner fitting.

3. Record the measurement in feet and inches.

SEO tip: Do not measure fabric or leg poles—measure the metal frame fittings only.

---

Step 2: How to Measure the Length of a Canopy Frame

The canopy frame length runs from the front of the canopy to the back.

How to measure canopy length:

1. Measure from the outside edge of the front corner fitting to the outside edge of the rear corner fitting.

2. Keep the tape measure straight and level.

3. Write down the measurement.

? Many canopies are square (such as 10×10), but always measure both length and width to confirm.

---

Step 3: How to Measure Canopy Peak Length

Measuring the canopy peak length is critical when ordering a high-peak or standard canopy replacement cover.

How to measure the canopy peak correctly:

1. Choose one corner of the canopy frame.

2. Measure from the center of the corner fitting to the top center fitting (peak hub).

3. Record this measurement carefully.

This peak measurement determines the slope and tension of the replacement canopy cover.

Do not measure from the ground to the peak.

---

Double-Check Your Canopy Frame Measurements

Before ordering your replacement canopy top:

• Measure each dimension at least twice

• Confirm the frame style (standard peak or high peak)

• Ensure the frame is not bent or misaligned

Accurate measurements help ensure a tight, secure, and professional fit.

---

Common Canopy Measuring Mistakes to Avoid

Avoid these common errors when measuring a canopy frame:

• Measuring the old canopy cover instead of the frame

• Measuring leg-to-leg instead of fitting-to-fitting

• Forgetting to measure the peak length

• Rounding measurements too aggressively

Precision matters when ordering replacement canopy covers.

---

Final Thoughts: Measure Your Canopy Frame with Confidence

Knowing how to measure your canopy frame correctly is the first step to purchasing the right replacement canopy cover. By accurately measuring the frame width, frame length, and peak length from corner fitting to center fitting, you’ll ensure a proper fit that performs well and lasts longer.

If you’re unsure about your measurements or frame style, contact your canopy supplier for assistance before placing your order. Please visit our canopy replacement options for more information or if you are ready to make a purchase.
